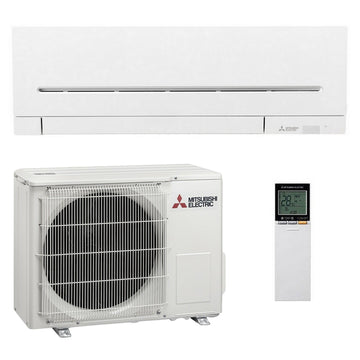

Mitsubishi Electric MSZ-HR25VF Wall Mounted Air Conditioning System
Upload FGAS Certification
To comply with UK regulations, we require proof that your installation will be carried out by an FGAS-certified engineer. Please upload a valid certification or appointment confirmation to complete your purchase.
The Mitsubishi Electric MSZ-HR25VF R32 air conditioning system is a high specification "Classic" flat panel wall-mounted model, utilizing the latest Mitsubishi Electric inverter technology. This energy-efficient unit features the latest GWP R32 Refrigerant and offers optional Wi-Fi control through the MELCloud App, providing easy management from your smartphone, tablet, or PC. The daily timer function allows for greater scheduling control.
Key Features & Benefits:
- Energy Efficiency: Rated A+ for heating and A++ for cooling, ensuring low running costs.
- Advanced Control: Optional Wi-Fi interface for control via the MELCloud app.
- Quiet Operation: Low noise levels for a peaceful environment.
- Compact Design: Modern and sleek, fitting seamlessly into any interior.
- Easy Scheduling: Daily timer for precise control.
Specifications:
Indoor Unit (MSZ-HR25VF):
- Heating Capacity: 3.15 kW (0.7 – 3.5)
- Cooling Capacity: 2.50 kW (0.5 – 2.9)
- Heating (UK): 2.61 kW (0.6 – 2.9)
- Cooling (UK): 2.48 kW (0.5 – 2.8)
- SHF (nominal): 0.78
- COP / EER (nominal): 3.71 / 3.13
- SCOP / SEER (BS 14825): 4.30 / 6.20
- Airflow (Heating Lo-Mid-Hi-Shi): 55-90-123-168 l/s
- Airflow (Cooling Lo-Mid-Hi-Shi): 60-90-120-162 l/s
- Pipe Sizes: 9.52 mm (3/8”) / 6.35 mm (1/4”)
- Sound Pressure Level (Heating Lo-Mid-Hi-Shi): 21-30-37-43 dBA
- Sound Pressure Level (Cooling Lo-Mid-Hi-Shi): 21-30-37-43 dBA
- Sound Power Level: 57 dBA
- Dimensions (WxDxH): 838 x 228 x 280 mm
- Weight: 8.5 kg
- Electrical Supply: Fed by Outdoor Unit
- Fuse Rating (BS88) – HRC (A): 6
- Interconnecting Cable No. Cores: 4
Outdoor Unit (MUZ-HR25VF):
- Sound Pressure Level (Heating / Cooling): 50 / 50 dBA
- Sound Power Level (Cooling): 63 dBA
- Weight: 23 kg
- Dimensions (WxDxH): 699 x 249 x 538 mm
- Electrical Supply: 220-240V, 50Hz
- Phase: Single
- System Power Input (Heating / Cooling - Nominal): 0.85 / 0.80 kW
- System Power Input (Heating / Cooling - UK): 0.77 / 0.63 kW
- Starting Current: 4.1 A
- System Running Current (Heating/Cooling - Max): 4.1 / 3.8 (4.8) A
- Fuse Rating (BS88) – HRC (A): 10
- Mains Cable No. Cores: 3
- Max Pipe Length: 20 m
- Max Height Difference: 12 m
- Charge Refrigerant (kg) / CO2 Equivalent (t) – R32 (GWP 675) – 7m: 0.40 / 0.27
- Max Additional Refrigerant (kg) / CO2 Equivalent (t) – R32 (GWP 675): 0.26 / 0.18
Why Choose Mitsubishi Electric: Mitsubishi Electric delivers innovative, high-performing HVAC systems with low running costs and reduced carbon emissions. Their versatile product range, driven by advanced technology, meets the latest legislation and regulations, ensuring optimal efficiency and customer satisfaction. With an industry-leading service and support network, Mitsubishi Electric offers comprehensive technical training and support from cradle to grave.
Installation Note: This unit must be installed by an F-Gas certified engineer to comply with EC/517/2014 and The Fluorinated Greenhouse Gases Regulations 2015. We offer installation services using our certified engineers. If you opt not to use our installation service, evidence of installation by an F-Gas qualified engineer will be required before shipment.
Enhance your indoor climate control with the Mitsubishi Electric MSZ-HR25VF Wall Mounted Air Conditioning System – where advanced technology meets sleek design for ultimate comfort and efficiency.
