Mitsubishi Electric Air Conditioning MSZ-LN35VG2 3.5Kw/12000Btu R32 Heat Pump Wall Mounted A+++
Upload FGAS Certification
To comply with UK regulations, we require proof that your installation will be carried out by an FGAS-certified engineer. Please upload a valid certification or appointment confirmation to complete your purchase.
Indoor Unit Specifications
Product Overview
Specification | Value |
---|---|
Indoor Unit Model | MSZ-LN35VG2 R/B/V/W |

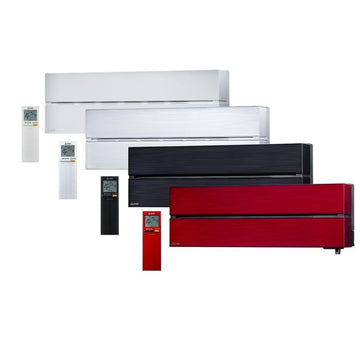

Colors Available | Ruby Red, Onyx Black, Pearl White, Natural White |
Package Includes | 1 x MSZ-LN35VG2 R/B/V/W indoor wall mounted unit 1 x Infrared Remote Controller (New backlit controller) |
Refrigerant Type | R32 |
Energy Efficiency | High CoP, up to 4.59 |
Noise Level | As low as 19 dBA* |
Control Interface | Built-in Wi-Fi, MELCloud App |
Technical Data
Specification | Value |
---|---|
Indoor Type | Wall Mounted |
Heating Capacity (kW) | 4.00 |
Cooling Capacity (kW) | 3.50 |
COP (Nominal) | 5.00 |
EER (Nominal) | 4.27 |
SCOP (BS EN14825) | 5.10 |
SEER (BS EN14825) | 9.50 |
Sound Pressure Level (dBA) | 19-24-29-36-43 |
Fuse Rating (BS88) - HRC (A) | 6 |
Dimensions (WxDxH) (mm) | 890 x 233 x 307 |
Weight (kg) | 15.5 |
Controller Set Point Range
Mode | Min-Max Temperature |
---|---|
Cooling | 19ºC to 30ºC |
Heating | 17ºC to 28ºC |
Auto | 19ºC to 28ºC |
Operational Range
Mode | Operational Range |
---|---|
Cooling | -10°C to +46°C |
Heating | -15°C to +24°C |
Links to Data Sheets
Document | Link |
---|---|
Data Sheet | Download |
MSZ-LN Brochure | Download |
MSZ-LN Service Manual | Download |
Optional Outdoor Units Accessories
Accessory | Model |
---|---|
Air Outlet Guide | MAC-889SG for mUZ-LN25/35VG2 |
Air Outlet Guide | MAC-882SG for mUZ-LN50VG2 |
Air Outlet Guide | MAC-886SG for mUZ-LN60VG2 |
Optional System Control Units
Control Unit | Model |
---|---|
Touch Screen Wired Remote Controller | PAR-CT01MAA-SB/PB (PB = Premium Finish) |
Standard Wired Remote Controller | PAR-40MAA |
Interface for m-NET, mA Remote Controller | MAC-334F |
Interface for mA Remote Controller | MAC-397IF |
Modbus and BACnet mSTP Adaptor | MELCOBEMS MINI |
Retail Control and I/O Interface | MELCORETAIL MINI |
Installation Requirement
Requirement | Details |
---|---|
Installation | Must be done by F-Gas qualified engineer. Evidence of installation by a qualified engineer required if not selecting installation service. |
